| 1/2.7” 5 Megapixel progressive scan STARVIS CMOS |
| H.265 & H.264 Dual-stream encoding |
| 15fps@5MP(2592×1944) |
| Digital WDR |

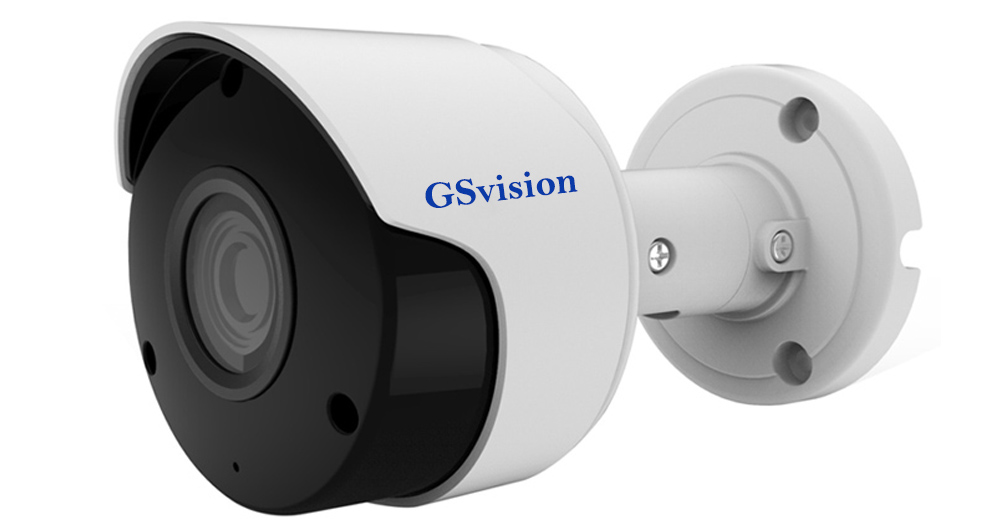

| Camera-Model | GS-BH256MCE |
| Resolution | 5MP 2592(H)×1944(V) |
| Image Sensor | 1/2.7" Progressive CMOS |
| Min.Illumination | Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
| Shutter | 1/5 ~ 1/20000s |
| Slow shutter | Support |
| Lens | 3.6 mm H.FOV: 77° |
| Day & Night | IR cut filter with auto switch（Day/Night/Auto/Schedule） |
| Digital noise reduction | 3D DNR |
| WDR | Digital WDR |
| Video Compression | H.265/H.264 |
| Video bit rate | 256Kbps ~ 8Mbps |
| Stream | Dual |
| Resolution | Mainstream (1~15fps) 5MP(2592×1944),4MP(2592x1520) 3MP(2048x1520),1080P(1920x1080) 960P(1280x960), 720P(1280x720) Substeam (1~15fps) VGA(640x480),QVGA(320x240) |
| Image Settings | Flip mode, Saturation, Brightness, Contrast, Hue, Sharpness adjustable |
| BLC | Support |
| ROI | Support |
| Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP,NTP, UPnP,SNMP,HTTPS,FTP |
| System Compatibility | ONVIF( Ver 2.6) |
| Interface | RJ45 10M / 100M Ethernet interface x1 |
| Led | 18pcs(SMD) |
| IR Range | Up to 30m |
| PoE | Yes |
| Water Proof | IP 66 |
| Power Supply | DC 12V/POE |
| Consumption | ≤ 7W |
| Dimension | Ø63 X115mm |
| Weight | appr. 225g |
| Storage Temperature | -30～+60°C |
| Operating Temperature | -30～+55°C |
